     LEAK TESTING MACHINES

Product Code : AD-LT01
Producer : AD
Product Details
Ensure product integrity with up to 0.1 Pa sensitivity, IoT-based data management and fully integrated solutions for automation lines that accelerate
 Order        Details


Details

LEAK TESTING MACHINES

Ensure product integrity with up to 0.1 Pa sensitivity, IoT-based data management and fully integrated solutions for automation lines that accelerate your test processes.

A component’s leak-tight integrity is one of the strongest assurances of your brand in the market. A faulty valve, a leaking battery pack or a non-standard medical catheter can cause not only financial loss, but also irreparable damage to your reputation.

Adlema Leak Testing Machines are designed to detect even microscopic leaks within seconds. With our automation infrastructure that eliminates operator errors and Industry 4.0-compatible communication protocols, you reduce reject rates on your production line while maximizing your testing capacity.

Differential Pressure Test Devices

Differential pressure measurement technology is one of the most precise test methods, simultaneously comparing micro-level pressure drops between the part being tested and a leak-tight reference volume at Pascal-level sensitivity. Compared to standard direct pressure measurement, it offers much higher resolution and enables you to detect even microscopic leaks on production lines within seconds. Whether for sterile medical packaging requiring low pressure or challenging cast parts exposed to high pressure, these systems are an essential industrial standard for production facilities that minimize test times without compromising quality.

BT4000 Series
Advanced Level



BT4000D Series
Dual



BT4000-LP Series
Low Pressure

Flow and Flow Rate Measurement Devices

Flow and flow rate measurement technologies are a critical step in verifying the functional integrity of products that require open or continuous flow, such as valves, pipelines, exhaust systems, catheters and gas transfer lines. Unlike the pressure decay method, these systems measure airflow directly or instantly detect mass flow rate. Adlema’s differential micro mass flow and flow rate sensors detect blockages or unwanted leaks on your production line within seconds. Thanks to their wide measurement range, they deliver uninterrupted, fast and reliable quality control for both flexible small parts and large-volume industrial systems.

BT6000 Series
Mass Flow

---

BT7000 Series
Flow Measurement



Special Function Test Devices

Field conditions and specific quality standards that go beyond standard production lines require custom-engineered solutions. From massive fuel tanks in aviation hangars to microelectronic components requiring IP67 leak-tight certification, and from portable cases designed for challenging laboratory-sensitive scenarios to volumetric analysis systems that accelerate mass production lines, our Special Function Test Devices are your most flexible solution partner for testing needs beyond standard limits.

BT3000 Series
Advanced Level

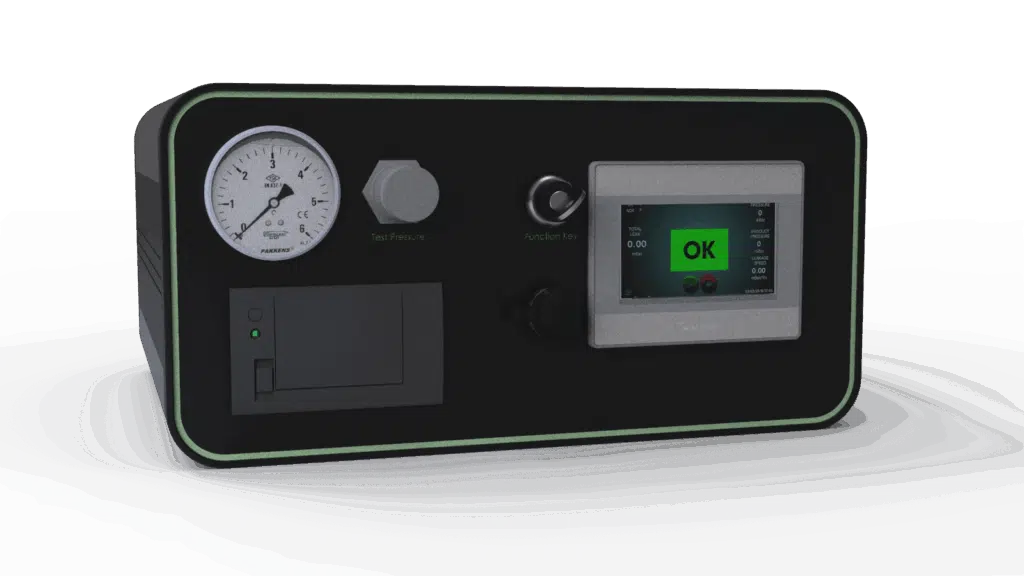

BT1000 Series
Standard Level

Helium Test Systems (Trace Gas Technology)

Helium test systems are advanced test technologies designed for critical applications that exceed the limits of conventional air-based leak testing methods and require ultra-high sensitivity. Using helium as a tracer gas, these systems detect microscopic leaks flawlessly in zero-defect-tolerance processes such as nuclear, aerospace, HVAC and medical implants. As Adlema, through our strategic partnership with Wayeal, one of the global leaders in this field, we bring the world’s most sensitive spectrometer technologies to your facility.

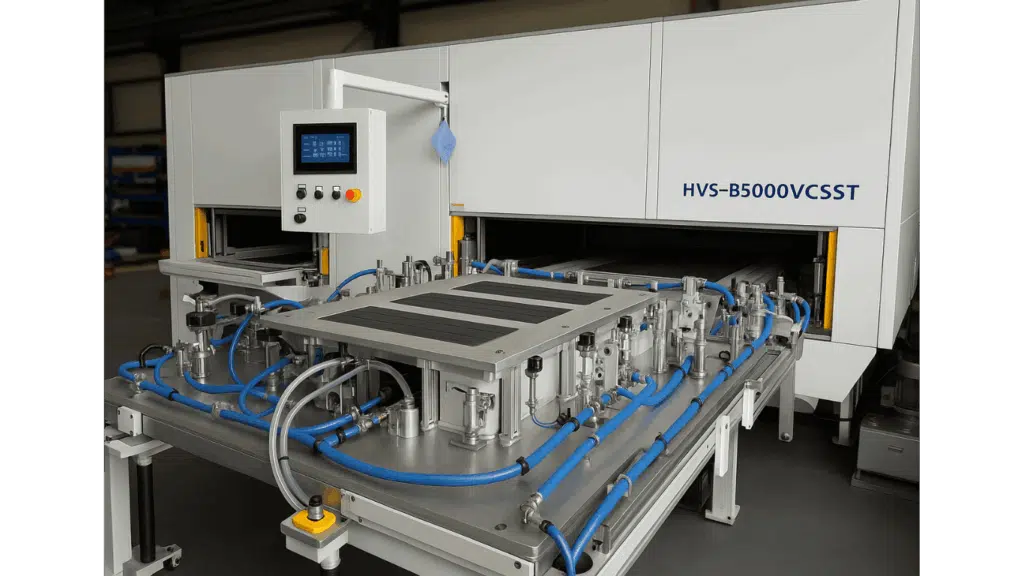

HVC Series
Helium Vacuum Chamber

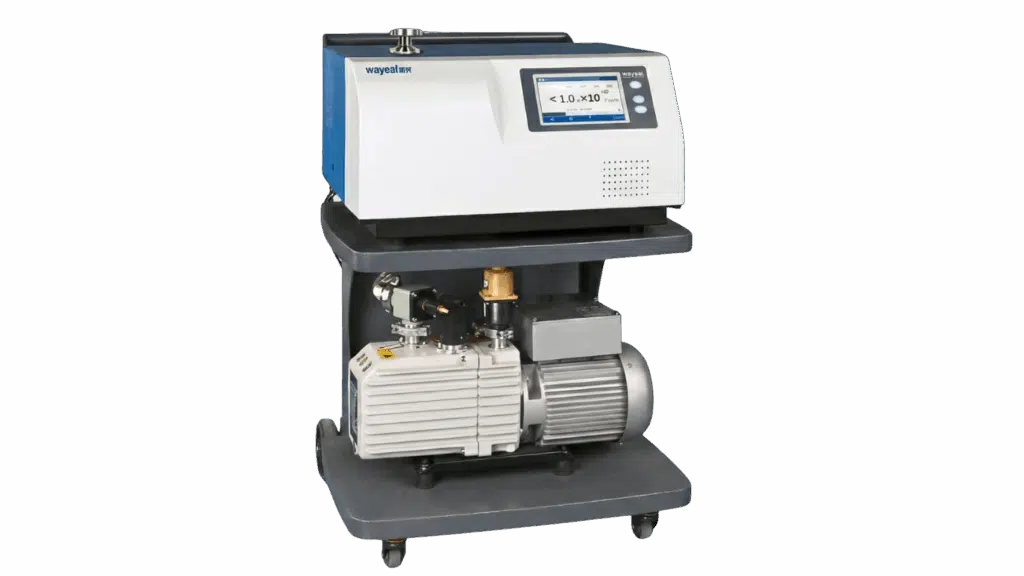

SFJ-231 Series

Mass Spectrometer



------------------------------------------------------------------------------------------------------------------------------



Perfect Your System



Helium leak testing is not simply the purchase of a standard device; it is a critical process. To achieve 100% accurate results from helium tests and prevent gas consumption, leak-tight automation solutions that fit your part perfectly are essential.

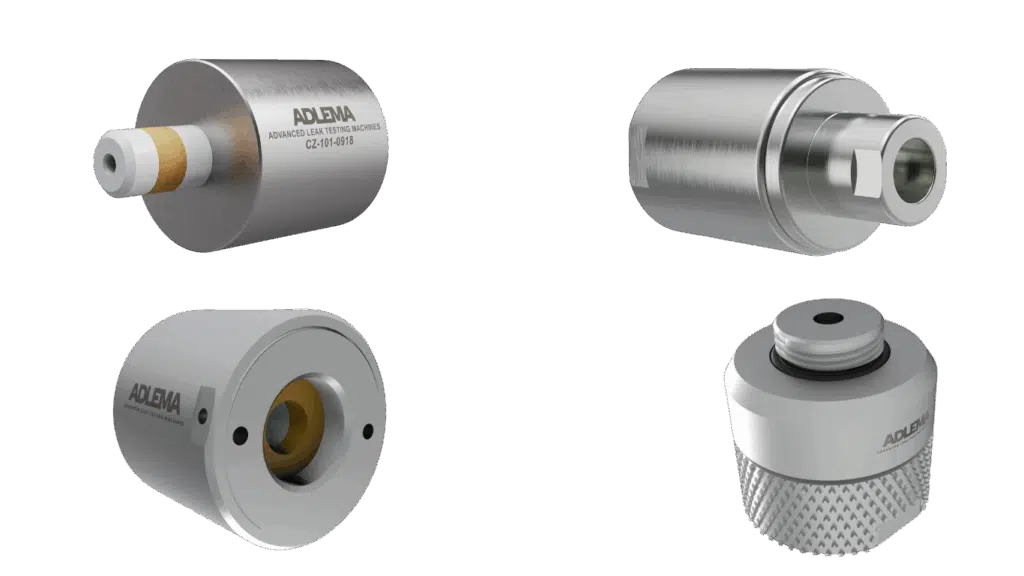

QUICK CONNECTORS - CZ SERIES



Perfect Testing Starts with a Flawless Connection



You may have the world’s most precise leak testing device, but if the fitting connected to the test part leaks, is incompatible, or creates a slow connection, your entire process is at risk. To overcome this operational bottleneck, Adlema develops mechanical connection equipment that makes every geometry 100% leak-tight within seconds, from straight holes to specific threaded structures, from asymmetric cast parts to smart lines, without creating additional automation costs.

CZ Series Quick Connectors

Designed to seal female/male threaded or straight holes leak-tight from their internal or external diameters. The fastest mechanical solution for pipe ends, hose inlets or engine blocks.

CZ-101 - Internal Diameter Connector

Expands outward by entering into the part. It has an operating pressure range of 1–10 Bar and a sealing diameter range from 4 mm to 65 mm.

Body D1 D2 L1 L2 T1 P1 Operating
Pressure (bar)		 Sealing
Diameter
1 45 10 58 20 G 1/8 G 1/8 1 - 6 10 - 12
2 58 12 - 16 62 22 G 1/8 G 1/8 1 - 6 12 - 18
3 65 18 - 24 69 24 G 1/8 G 1/8 1 - 6 18 - 26
4 70 26 - 32 85.5 35 G 1/2 G 1/8 1 - 8 26 - 34
5 80 34 - 43 90 35 G 3/4 G 1/8 1 - 10 34 - 47
6 106 47 - 66 104 44 G 3/4 G 1/8 1 - 10 47 - 70

CZ-102 - External Diameter Connector

Provides leak-tightness by gripping the part from its outer surface. It has an operating pressure range of 1–10 Bar and a sealing diameter range from 10 mm to 70 mm.

Body D1 D2 L1 L2 L3 T1 P1 Operating
Pressure (bar)		 Sealing
Diameter
1 36 32 59 8 4 G 1/8 G 1/8 1 - 6 4 - 12
2 42 38 59 8 4 G 1/8 G 1/8 1 - 6 12 - 20
3 50 46 59 8 4 G 1/8 G 1/8 1 - 6 20 - 28
4 60 56 64 10 6 G 1/2 G 1/8 1 - 6 28 - 38
5 72 68 64 10 6 G 3/4 G 1/8 1 - 10 38 - 50
6 84 80 70 12 8 G 3/4 G 1/8 1 - 10 50 - 65

MEG Series Quick Connectors

Specially designed to safely and leak-tight seal threaded connections under high pressure. In addition, with its integrated test port that delivers test air, it makes products directly ready for leak testing.

MEG-F

Safely seals externally threaded / male connections. It has a pressure resistance of 1–10 Bar and is compatible with all standard threads from G1/8 to G1.

Thread
Size		 D1 D2 L1 L2 P1 Operating
Pressure (bar)
G1/8 42 27,8 49 39 G1/8 1-10
G1/4 42 27,8 49 39 G1/4 1-10
G3/8 42 27,8 49 39 G3/8 1-10
G1/2 42 27,8 49 39 G1/2 1-10
G3/4 62 27,8 54 44 G1/2 1-10
G 1 62 27,8 54 44 G1/2 1-10

MEG-M

Fully integrates with internally threaded / female holes. It provides compatibility from G1/8 to G1 at an operating pressure of 1–10 Bar.

Thread
Size		 D1 L1 L2 P1 Operating
Pressure (bar)
G1/8 27 36 6 G1/8 1-10
G1/4 27 36 6 G1/4 1-10
G3/8 36 36 6 G3/8 1-10
G1/2 36 36 6 G1/2 1-10
G3/4 50 50 6 G3/4 1-10
G 1 50 50 6 G 1 1-10

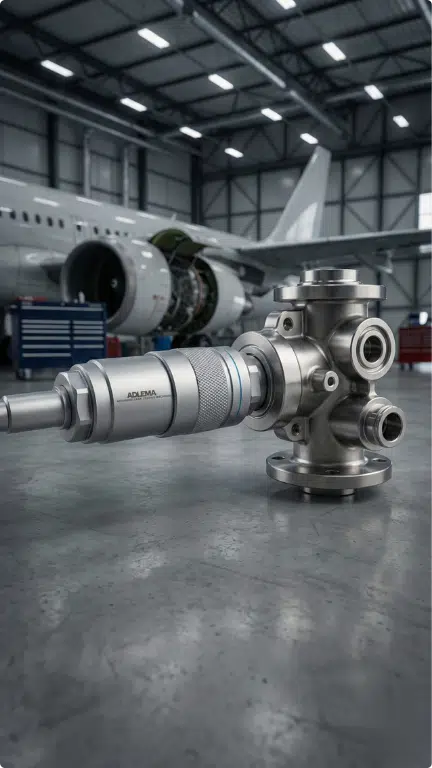

Custom Connector Systems for Specific Industries

Where standard round holes and threaded structures end, Adlema’s custom engineering solutions begin.

From the asymmetric and high-pressure valves of the aerospace industry to the delicate and sterile packaging of the medical industry, we design custom quick connection adapters that provide 100% leak-tightness, no matter how challenging the geometry is.

Aerospace & Defense: Special alloy designs that perfectly fit asymmetric surfaces and withstand ultra-high pressure.
Medical & Pharmaceutical: Soft-touch silicone seals that do not deform the product, such as flexible packaging and IV sets, and comply with cleanroom standards.
Automotive & Casting: Pneumatic heads suitable for robotic lines, absorbing tolerances on rough cast surfaces.

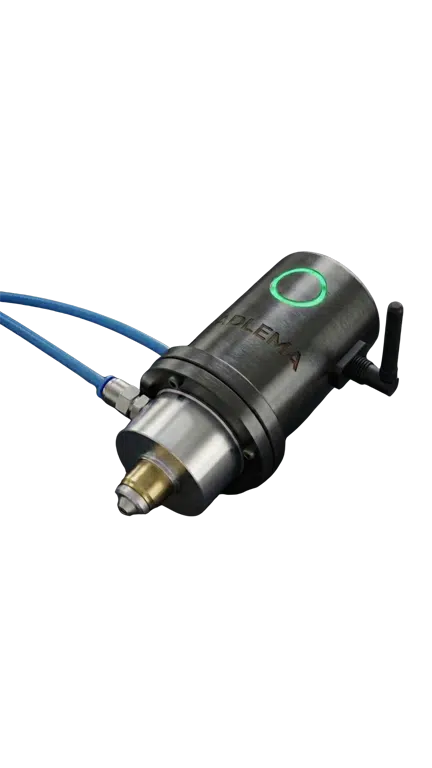

Smart Connector Systems

Meet the technology that not only measures leak testing, but also digitalizes it and completely eliminates boundaries.

Smart Connector Systems combine integrated differential pressure decay measurement and quick sealing technology in a single portable body. In the field or on the production line, they make your testing processes 100% traceable without depending on electricity or cables.

Automatic Leak Verification: Special alloy designs that perfectly fit asymmetric surfaces and withstand ultra-high pressure.
Multi-Test with Master-Slave: Soft-touch silicone seals that do not deform the product, such as flexible packaging and IV sets, and comply with cleanroom standards.

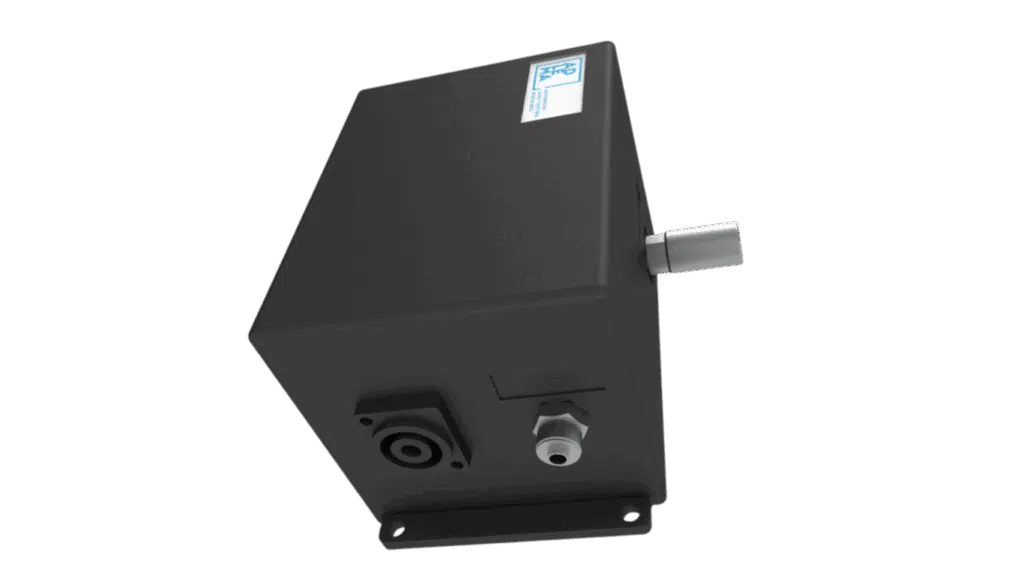

QUICK CONNECTORS - SL MODULE


Verify Your System with GBH Leak Masters and SL Modules
